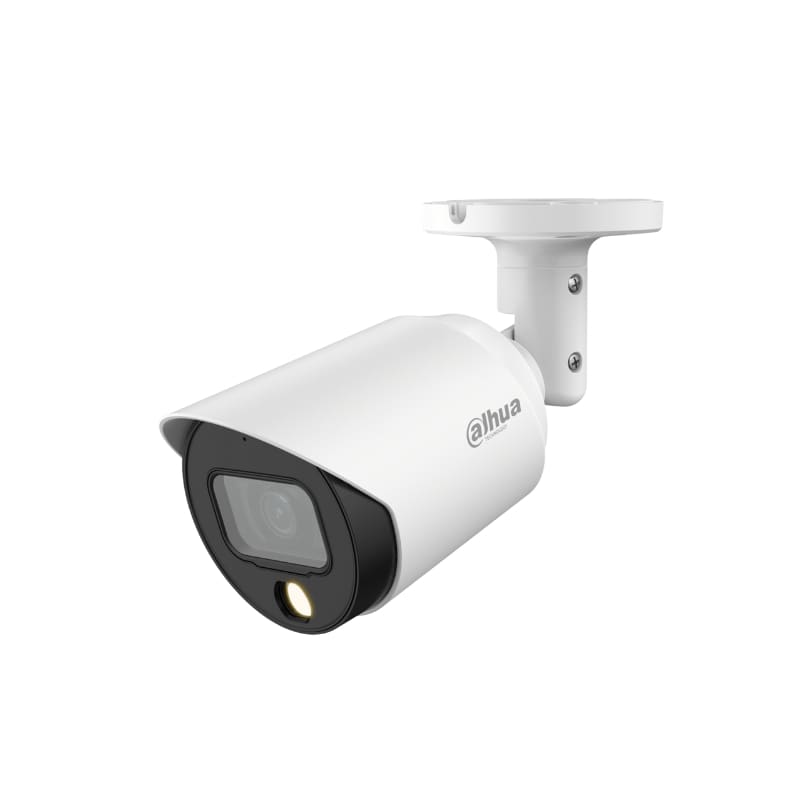

Dahua 5MP Full-color HDCVI Bullet Camera

Regular price $45.00 USD
Regular price Sale price $45.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Order On WhatsApp

CONTACT US ON WHATSAPP FOR SET-UP SERVICES

+96103717714

 * The parameters and datasheets below can only be applied to1509-S2 series.

*In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

> Max 25 fps@5MP (16:9 video output)

> 120 dB true WDR, 3D NR
> 24/7 color imaging
> 20 m illumination distance
> CVI/CVBS/AHD/TVI switchable
> Built-in mic (-A)
> 3.6 mm fixed lens (2.8 mm optional)
> IP67, 12 V DC

Camera

Image Sensor

5MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL:1/3 s–1/100,000 s

NTSC:1/4 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001 Lux/F1.0, 0 Lux warm light on

Illumination Distance

20 m (65.61 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed lens

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 112°; V: 57°; D: 132°
3.6 mm: H: 88; V: 46°; D: 104°

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 1.6 m (5.25 ft);
3.6 mm: 2.3 m (7.5 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

67.4 m

(212.3 ft)

27.0 m

(88.6 ft)

13.5 m

(44.3 ft)

6.7 m

(22.0 ft)

3.6 mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.2 ft)

Video

Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

BLC

BLC/HLC/WDR/HLC-Pro

WDR

120 dB

White Balance

Auto; Area WB

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic (-A)

Power

Power Supply

12 V ±30% DC

Power Consumption

Max 4.4 W (12 V DC, warm light on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

174.5 mm × 72.3 mm × 70.6 mm ( 6.87" × 2.85" × 2.78" )

Net Weight

0.36 kg (0.79 lb)

Gross Weight

0.49 kg (1.08 lb)
